Description

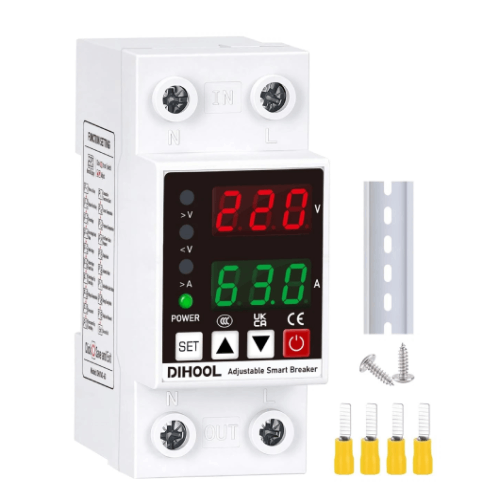

Smart Circuit Breaker with Adjustable Voltage Protection, 70-200V Low and 140-300V High Cutoff, 1-63A Overcurrent Protector, AC Disconnect Switch, DIN Rail Mount

DHOV3 Smart Miniature Circuit Breaker With Adjustable Current 1~63 Amp, AC 120V Current Limit Quick Disconnect With Overvoltage And Undervoltage Protection. integrating overvoltage protection, undervoltage protection and overcurrent protection. Applicable to single-phase AC voltage 120V, rated working frequency 50/60Hz, Maximum working current 63A.

In case of over-voltage fault, under-voltage fault and over-current fault in the Live wire , this product can instantly cut off the power supply and protect the electrical equipment from burning. When the line returns to normal, the voltage protector can automatically reconnect the line. The overvoltage value, undervoltage value, overcurrent value and protection time of the product can be adjusted. It is mainly used for overvoltage/undervoltage protection of incoming lines of residential, photovoltaic and factory distribution boxes.
